- 레이저다이오드 | Laser Diode > SLD_SOA
| Product |
LUXMUX 14pin Butterfly Package SLED ( Single , 1270 ~ 1705nm ) Output power : 6 ~ 30 mW Bandwidth ( FWHM ) : 35 ~ 70 nm Spectral width : 1270 ~ 1705 nm With FC / APC connector ( Optional : FC / PC or SMA ) Bulit-in independent monitor photodiode and one thermoelectric cooler ( TEC ) |
|
| Application |
- Optical components testing ( OCT ) - Telecom test equipment - Medical optical coherence tomography - Industrial optical coherence tomography - Metrology - Fiber optics gyroscopes - Optical sensing - White light interferometry - Research and Development |
|
| Download | ||
Product Info
This solution is a superluminescent diode (SLED) that comes in a 14-pin butterfly package, and operates within the
near-infrared region (NIR). It is a compact package that provides an integrated optical interface and one of the highest
power densities within the SLED technology industry.

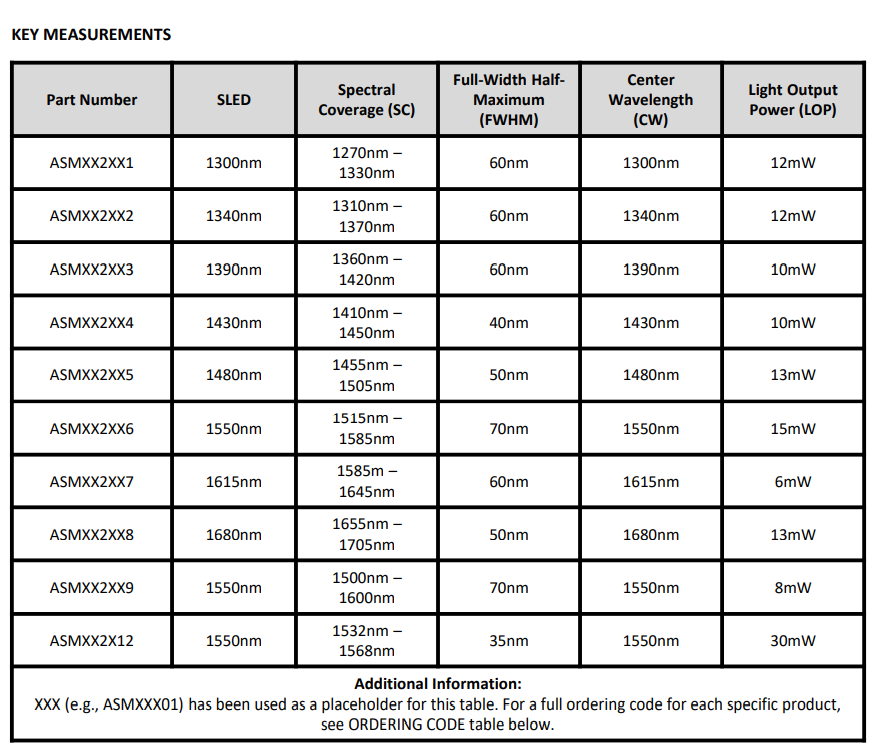

This package offers spectral coverage between 1270nm and 1705nm, with minimum optical power between 6mW and 30mW. The temperature of the device is regulated by an integrated thermoelectric cooler (TEC).
This light source is robust and easy-to-use, making it an appropriate fit for many different types of manufactured assemblies requiring light power, including the applications below.
This package offers spectral coverage between 1270nm and 1705nm, with minimum optical power between 6mW and 30mW. The temperature of the device is regulated by an integrated thermoelectric cooler (TEC).
This light source is robust and easy-to-use, making it an appropriate fit for many different types of manufactured assemblies requiring light power, including the applications below.
