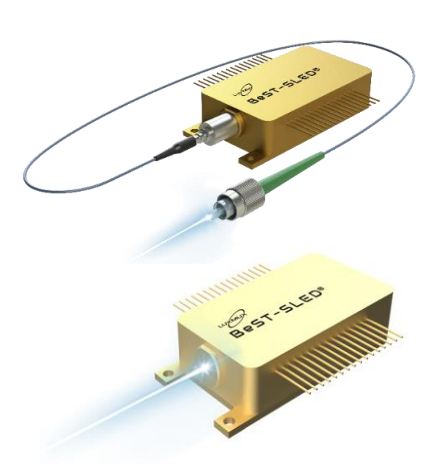

LUXMUX Multi-Channel SLED Source ( Optical Spectral Engine , 1265 ~ 1725nm )


2 and 6 SLED in a Single unit.
Fiber-coupled output power from 12 ~ 40 mW.
Free space output power from 35 ~ 130 mW.
Spectral width : 1265 ~ 1725 nm.
Bandwidth ( FWHM ) : 100 ~ 460 nm.
Built-in independent monitor photodiode , common TEC for all SLEDs.
FC / APC connector ( Optional FC / PC or SMA ).
Application - Optical components testing ( OST )
- Biomedical imaging systems
- Telecom test equipment
- Optical sensing
- Medical optical coherence tomography
- White light interferometry & Chromatic dispersion
- Industrial optical coherence tomography
- Research and development
Download
관심제품등록

Product Info

Luxmux’s Multi-SLED® (superluminescent diode) OSE2 is a compact broadband light source that operates in the near-infrared region. The product itself is a 32-pin butterfly package that uses a set of superluminescent diodes, one monitor diode for each SLED (enabling better power control and monitoring capabilities), a thermoelectric cooler (TEC), an integrated isolator, and a spectral stitching design to prde overlapping spectral coverage. The Multi-SLED can be configured with up to six light sources.

The OSE2 offers spectral coverage from 1265nm to 1725nm, with up to 40mW of optical power. This product enables stable power and center-wavelength performance over time, and steady optical performance over a wide spectrum of wavelengths. A proprietary spectral stitching technique across the spectral range. The OSE2 is compact and easy to use, making it an appropriate fit for many different types of manufactured assemblies requiring light power.

The Multi-SLED uses Luxmux’s spectral stitching technique of integrating multiple wavelengths into a single broad spectrum, designed for optimum coupling efficiency. These compact, high-bandwidth modules provide the optimum power and highest optical density bandwidth in a single fiber system in the industry. The Multi-SLED product lines can be spectrally tailored to suit specific application needs. This provides exceptional flexibility and usability, making these sources ideal for the applications includd below.
