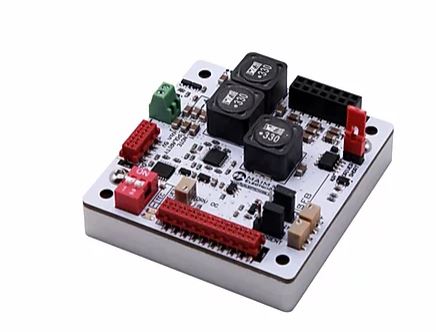

CURRENT, VOLTAGE & TEC CONTROLLER

• Maximum current LD (I): 250 mА; 750 mA; 1500 mA
• Output voltage LD (V): 0.5-3 V
• Current stability: 0.1 %
• Current set accuracy: 1 %
• Output current noise: 10-15 µA
• ТЕС output power: ±4А
• TEC output voltage: ±4V
• TEC output current ripple: 2-4mА
• TEC Feedback Sensor: 10 kOhm NTC
• Temperature Control Range: +15 to +40 °C

LASER DIODE PROTECTION

• Current limit
• Temperature limit
• Reverse current protection
• ESD and transient protection
• Soft-start laser diode current ramp.

DIMENSIONS AND WEIGHT

• Dimensions 57.9 x 61 x 22 mm
• Weight: 115 g

USER INTERFACE

• Trim Potentiometers for Driver Current and TEC Power
• Analog
• RS-232 / UART Digital Interface/ USB

INPUT

• Input voltage range (Vin): 5 V

PACKAGE SET

• Driver – 1 pcs
• 50 cm ribbon cable with one 8-pin connector – 1 pcs
• 50 cm ribbon cable with one 20-pin connector – 1 pcs
• Datasheet & User Manual – 1 pcs

WARRANTY PERIOD

• 1-year manufacturer's warranty
