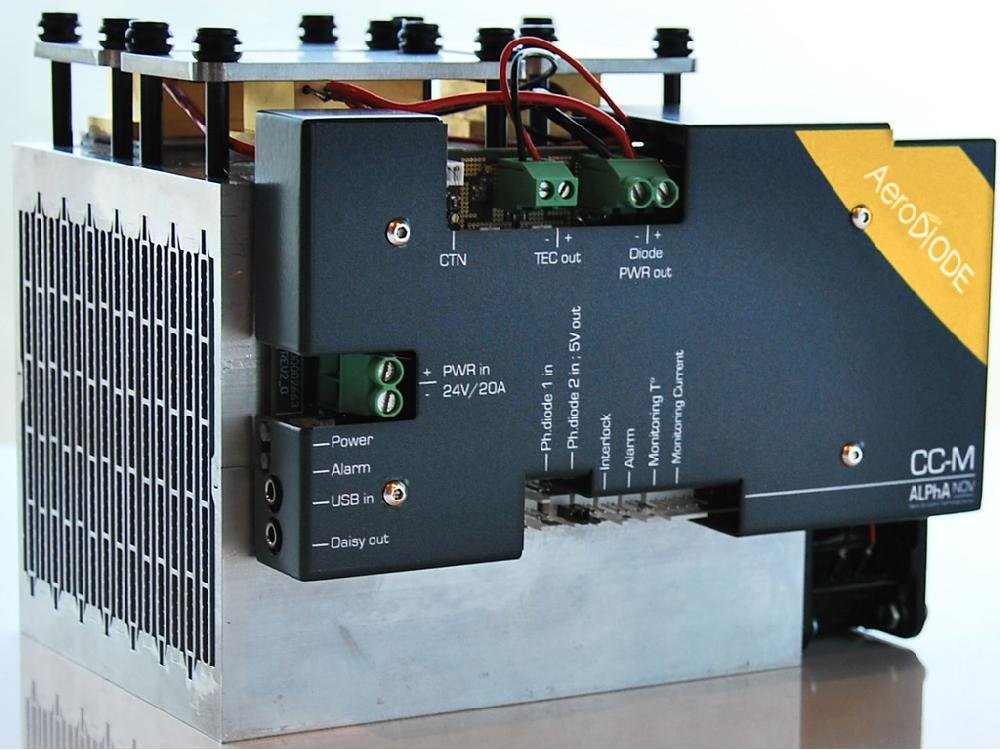

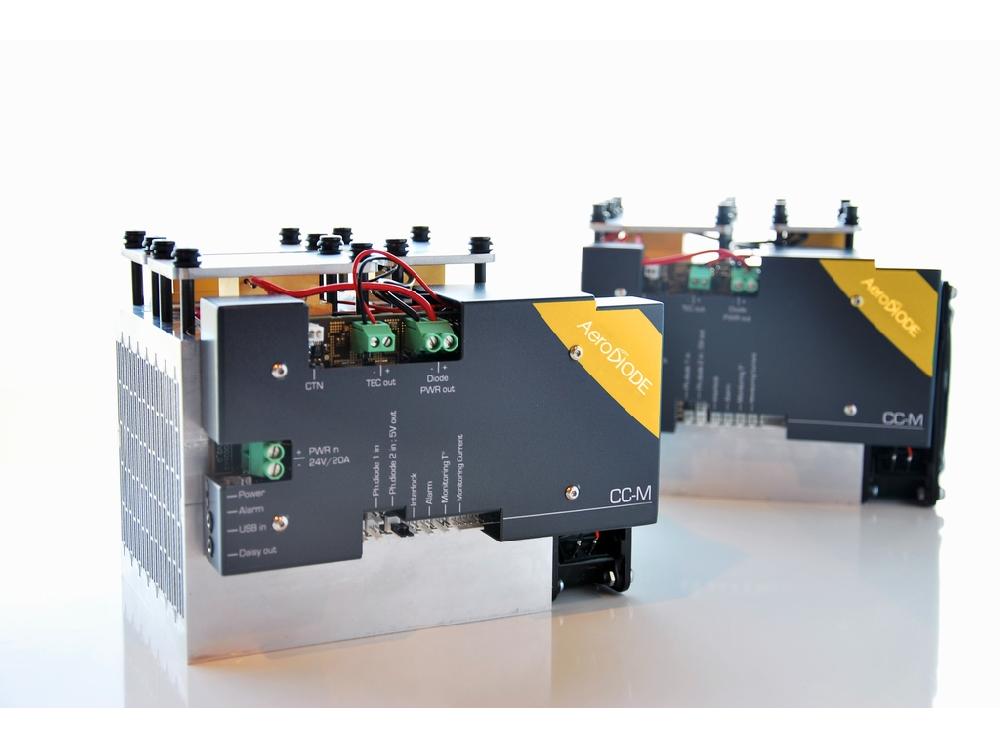

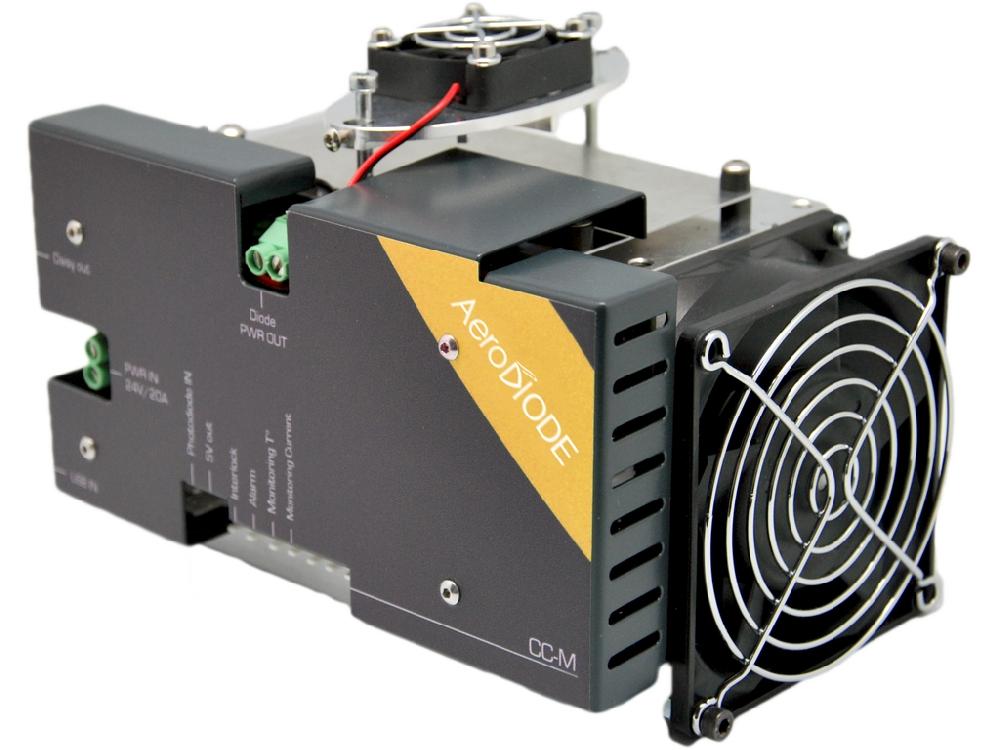

High power laser diode driver - 36 V/21 A with TEC & Air Cooling


-. Compatible with multiple elements laser diodes like II-VI,
NLight, IPG, Lumentum, Dilas etc.
-. Drives laser diodes up to 36 V - 21 A
-. Ultra-stable laser power for short and long term operation
-. More than 150 W CW power with new generation laser
diodes
-. Max modulation frequency : 100 kHz
-. Highly efficient ( > 80 % from plug)
-. Smart control (USB interface to drive simultaneously several
modules from ALPhANOV’s laser electronics series)
Application
Download
관심제품등록

Product Info

Key features

  • Ultra-stable laser power for short and long term operations
  • Up to 150 W CW power with new generation laser diodes
  • Max modulation frequency : 100 kHz
  • Highly efficient (> 80 % from plug)
  • Can be configured for two laser diodes mounted in series
  • Automatic fan regulation for quiet operation at low power
  • Photodiode power monitoring input
  • ACC (Automatic Current Control) and APC (Automatic Power Control) modes
  • Smart control (USB interface & GUI)
  • Many available libraries (LabVIEW, DLLs, Hexa, Python)



Applications of this high power laser diode driver include fiber laser pumping, nondestructive control etc.

CCM high power laser diode driver is part of our “Multiboard” laser driver and synchronization module family. These are are ideal solutions to help R&D teams reach their best performance by facilitating fast and cost effective development of integrated solutions. GUI software lets the user have total control of all module functions.

It works alone or in series with other products in our range like :



Complex systems, such as fiber lasers, can be quickly developed on this module platform.

See our Tutorial  : Fiber laser basics to get an overview of its capabilities.


 CCM-std
(Standard version)
New : CCM-HP
(High Power)
Output current0 - 13 A0 - 21 A
Output Voltage0 - 23 V0 - 36V
Laser diode regulation T° range15-40 °C
Laser diode temperature stability (integration dependant)10 mK
Low power adjustment precision0.05 A
Laser power stability< 0.05%
Max modulation rate100 kHz
Interface/GUI/librariesUSB/UART - Windows 7/10 ; DLLs - Hexa - Labview - Python
Power supply24 V (220/110V power supply not included)
Dimensions (mm)238 * 119 * 112238 * 146 * 142.5
