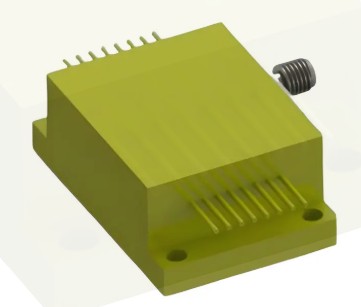

HansTCS 980-640-450nm multi wavelength Laser Diode Module ● High output power of 10/0.2/3W ● 200μm/0.22NA multimode optical fiber ● Center wavelength 980/640/450±10nm |
|
| Application | ● Medical applications | |
| Download | ||
Product Info
The 980-640-450nm Multi Wavelength Laser Diode Module features an advanced optical design that allows for wide range of applications including medical, industrial, scientific and commercial use. Additionally, its compact size makes it easy to integrate into existing systems or machines without needing extra space. You can easily mount it on most surfaces using standard screws or brackets provided by the manufacturer making integration fast and straightforward without sacrificing reliability or quality performance from your device, which is widely used in dental industry.
Typical Device Performance (25℃)
| Typical | Unit | |||||||||||||
| Optical | ||||||||||||||
| Center Wavelength | 980±10 | 640±10 | 450±10 | W | ||||||||||
| CW Output Power | 10 | 0.2 | 3 | nm | ||||||||||
| Spectral Width (90%Energy) | 6 | nm | ||||||||||||
| Wavelength Shift with Temperature | 0.3 | nm /℃ | ||||||||||||
| Electrical | ||||||||||||||
| Threshold Current | 1.3 | 0.17 | 0.8 | A | ||||||||||
| Operating Current | 12 | 0.5 | 2 | A | ||||||||||
| Operating Voltage | 1.73 | 2.1 | 4 | V | ||||||||||
| Slope Efficiency | 0.93 | 0.45 | 2.5 | W / A | ||||||||||
| Power Conversion Efficiency | 48 | 12 | 37 | % | ||||||||||
| Fiber* | ||||||||||||||
| Fiber Core Diameter | 200 | μm | ||||||||||||
| Fiber Cladding Diameter | 220 | μm | ||||||||||||
| Fiber Buffer Diameter | 500 | μm | ||||||||||||
| Numerical Aperture | 0.22 | - | ||||||||||||
| Fiber Length | 1-5 | m | ||||||||||||
| Fiber Connector | - | - | ||||||||||||
* Customized fiber and connector available.
Absolute Ratings
| Min | Max | Unit | |||||||||||||
| Operating Temperature | 15 | 35 | ℃ | ||||||||||||
| Operating Relative Humidity | - | 75 | % | ||||||||||||
| Cooling Mode | - | Water cooling(25℃) | - | ||||||||||||
| Storage Temperature | -20 | 80 | ℃ | ||||||||||||
| Storage Relative Humidity | - | 90 | % | ||||||||||||
| Lead Soldering Temperature (10 s max) | - | 250 | ℃ | ||||||||||||
