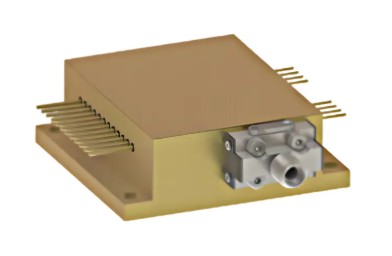

HansTCS 1064-980-808-640nm multi wavelength Laser Diode Module ● High output power of 8/10/8/0.2W ● 400μm/0.22NA multimode optical fiber ● Center wavelength 1064/980/808/640±10nm |
|
| Application | ● Medical applications | |
| Download | ||
Product Info
The 1064-980-808-640nm multi wavelength Laser Diode Module is designed with four high-quality laser diodes that emit different wavelengths.808nm Activates the oxidative process of haemoglobin, accelerating ATP production.The correct energy supply promotes regeneration of muscle and tendon tissue. 980nm is Absorbed mainly by water, it optimises the action on thermo- and mechanoreceptors. It has a compact and robust design that makes it suitable for use in harsh industrial environments. The laser diode module is equipped with an SMA905 fiber connector, which enables easy integration with existing fiber optic systems. The air cooling system ensures its stable performance and reduces its overall operating costs.
Typical Device Performance (25℃)
| Typical | Unit | ||||||||||
| Optical | |||||||||||
| Center Wavelength | 8 | 10 | 8 | 0.2 | W | ||||||
| CW Output Power | 1064±10 | 980±10 | 808±10 | 640±10 | nm | ||||||
| Spectral Width (90%Energy) | <10.0 | nm | |||||||||
| Wavelength Shift with Temperature | 0.33 | nm /℃ | |||||||||
| Electrical | |||||||||||
| Threshold Current | 1.0 | 1.3 | 2.0 | 0.2 | A | ||||||
| Operating Current | 11.0 | 12.5 | 10.0 | 0.5 | A | ||||||
| Operating Voltage | 1.5 | 1.6 | 1.8 | 2.3 | V | ||||||
| Slope Efficiency | 0.8 | 0. 9 | 1.0 | 0.7 | W / A | ||||||
| Power Conversion Efficiency | 50.0 | 49.0 | 43.0 | 17.0 | % | ||||||
| Fiber* | |||||||||||
| Fiber Core Diameter | 400 | μm | |||||||||
| Fiber Cladding Diameter | 440 | μm | |||||||||
| Numerical Aperture | 0.22 | - | |||||||||
| Fiber Length | 1-5 | m | |||||||||
| Fiber Connector | - | - | |||||||||
* Customized fiber and connector available.
Absolute Ratings
| Min | Max | Unit | ||||||||||
| Operating Temperature | 15 | 35 | ℃ | |||||||||
| Operating Relative Humidity | - | 75 | % | |||||||||
| Cooling Mode | - | Water cooling（25℃） | - | |||||||||
| Storage Temperature | -20 | 80 | ℃ | |||||||||
| Storage Relative Humidity | - | 90 | % | |||||||||
| Lead Soldering Temperature (10 s max) | - | 250 | ℃ | |||||||||
This instruction is for reference only. Han's TCS improves its products continually, therefore may
change specifications without notice to customers, for details, please contact with Han's TCS sales. @2023 Han's TianCheng Semiconductor Co., Ltd. All rights reserved.
