Product Info
ELEPHANT 3-Axis Scan Head
The optical design of the ELEPHANT scan head offers a wide range of working field sizes and processing distances and makes it possible to customize the scan head precisely to meet the customer’s requirements without altering the overall size of the scan head. The fast Z-axis enables a high-dynamic focus shifting. This allows economical and precise processing of 3-dimensional parts, without changing the position of the part or the scan head. Our solution features an option with and without fiber coupling, the FIBER ELEPHANT, or the ELEPHANT scan head, respectively. Additionally, different wavelength and aperture selections are available to enable the perfect fit for your application. Efficient processes and high flexibility in terms of working volume sizes make the ELEPHANT a future-oriented and versatile solution for cutting, perforating, engraving, and welding applications.
Description
The ELEPHANT high-performance scan heads are used for a broad range of laser processing applications, including cutting, perforating, engraving, and welding applications. These scan heads have been specially developed for large work areas and offer a very good spot performance over the entire scan range, even over large working distances. They are employed in automated applications and are available in various models with and without fiber coupling option.
Specifications
| Aperture | 16 mm | 21 mm | 36 mm | 50 mm |
|---|---|---|---|---|
| Fiber Box Option | No | Yes | Yes | Yes |
| Wavelength | 1064 nm | 355, 532, 1064 nm | 1064 nm | 1064 nm |
| Step Response 1% | 0.42 ms | 0.65 ms | 1.2 ms | 2.5 ms |
| Step Response 10% | 0.8 ms | 1.05 ms | 2.5 ms | 4.0 ms |
| Step Response 100% | 9 ms | 12 ms | 18 ms | 30 ms |
| Long Term Offset Drift1 | < 300 mrad | < 300 mrad | < 300 mrad | < 300 mrad |
| Maz. Scan Angle per Axis | 0.78 mrad | 0.78 mrad | 0.78 mrad | 0.78 mrad |
| Repeatability | 1.5 mrad | 1.5 mrad | 1.5 mrad | 1.5 mrad |

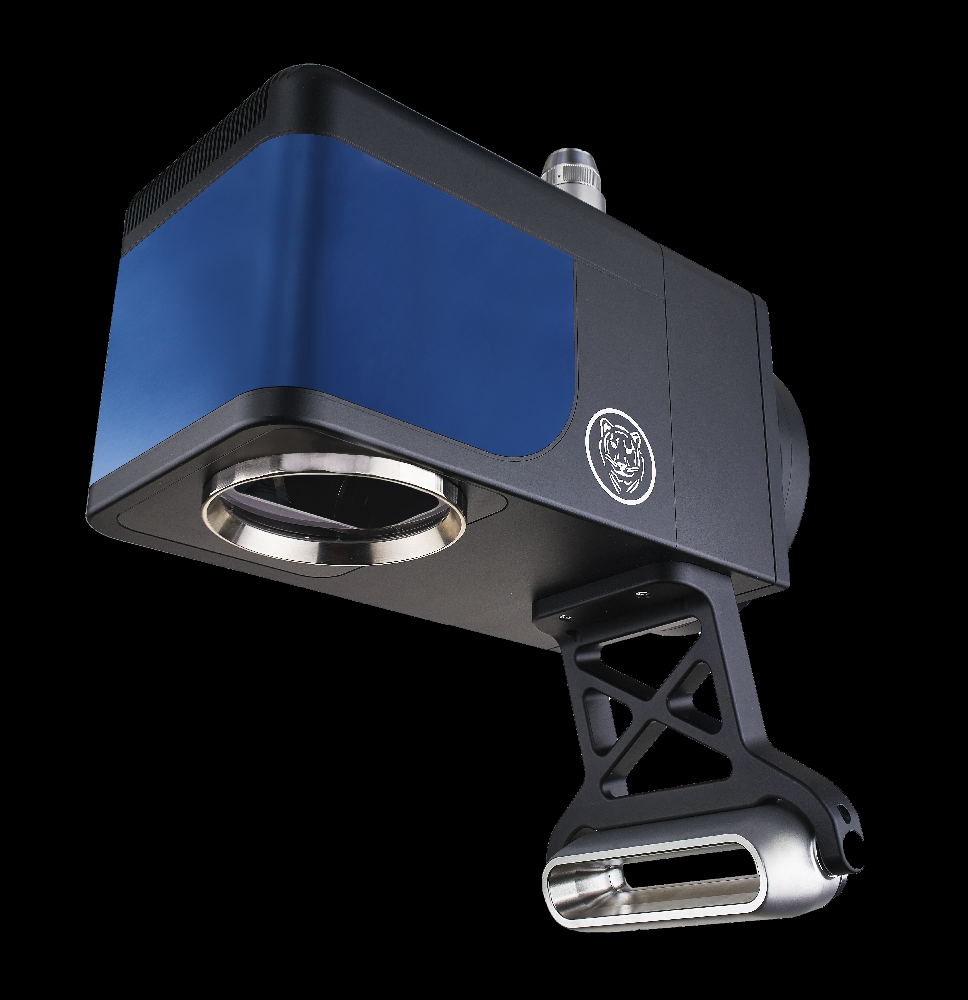

FIBER TIGER
Our ARGES 3-axis high-performance scan heads are primarily used for cutting and welding applications. These scan heads have been specially developed for large work areas and offer a very good spot performance over the entire scan range, even over large working distances. They are employed, amongst other things, on robots in automated applications and are available in various models with and without a fiber connection.
Description
Engineered by our ARGES brand, the FIBER TIGER is an extremely compact and robust scan head for robot‑assisted laser processing and other ‘on‑the‑fly’ type applications in the mid to high kW range. This scan head features a highly dynamic Z‑axis for ultrafast and precise 3-axis laser material processing. It has been designed especially for welding and cutting applications and can be employed in a wide variety of industrial sectors, like automotive, aerospace and machine construction. The FIBER TIGER is a 36 mm aperture size scan head suitable for industrial-scale processing of all commonly used materials, such as metals, plastics and ceramics and can be operated with all commercially available single mode or multi-mode fiber lasers.
All ARGES scan heads are compatible with ARGES ASC controllers and InScript® software.
Specifications
Working Distance 275 mm 400 mm 600 mm Max Scan Speed 12,400 mm/s
16,000 mm/s
22,300 mm/s
Aperture 36 mm
36 mm
36 mm
Step Response 100% 14.52 ms
14.52 ms
14.52 ms
Scan Angle 0.79 rad
0.79 rad
0.79 rad
Repeatability <0.5 µrad
<0.5 µrad
<0.5 µrad
| Working Distance | 275 mm | 400 mm | 600 mm |
|---|---|---|---|
| Max Scan Speed | 12,400 mm/s | 16,000 mm/s | 22,300 mm/s |
| Aperture | 36 mm | 36 mm | 36 mm |
| Step Response 100% | 14.52 ms | 14.52 ms | 14.52 ms |
| Scan Angle | 0.79 rad | 0.79 rad | 0.79 rad |
| Repeatability | <0.5 µrad | <0.5 µrad | <0.5 µrad |
