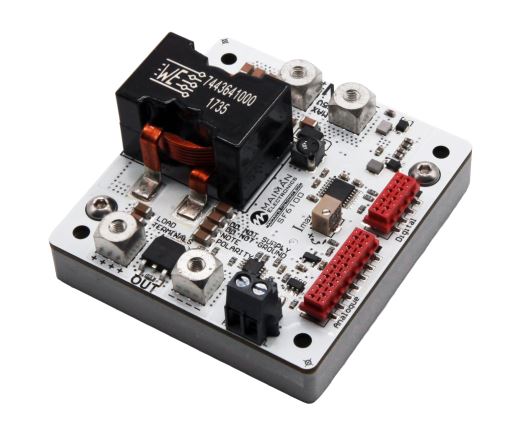

High Power Laser Diode Driver OEM CW 10А 40V SF6040 v2.0


Low current ripple
No need to adjust voltage
Soft-start
Adjustabl ocercurrent limit
Thermal warning and shutdown
Reverse current protection
Crowbar circuit protection
Universal controls
NTC thermistor input
Application Supplying laser diodes< bars and arrays
Supplying high power LED arrays
Download
관심제품등록

Product Info







LASER DIODE CURRENT & VOLTAGE
  • Output Current Range (I): 0 ~ 10 Аmps
  • Output Voltage (0.8*Vin max) (V): 5 ~ 40 Volts
  • Minimum Current Set-Point Step Size: 0.01 Amps
  • Rise Time: (Iout = 5A) min - 60μs; max - 100μs

  • Rise Time: (Iout = 10A) min - 60μs; max - 100μs

  • Fall Time: min - 20μs; max - 80μs
  • Current Stability: <0.2 %
  • Current Setpoint Absolute Accuracy: <1 %

LASER DIODE PROTECTION
  • Soft-Start Current Ramp to User Set-
    Point
  • User Adjustable Current Limit
  • Over-Current Protection Shutdown
  • Over-Temperature Warning & Shut-Down
  • Reverse Current Protection
  • Crowbar Circuit Protection
  • Disable Input
  • Interlock

DRIVER DIMENSIONS
  • Dimensions: 37 mm x 58 mm x 21 mm
