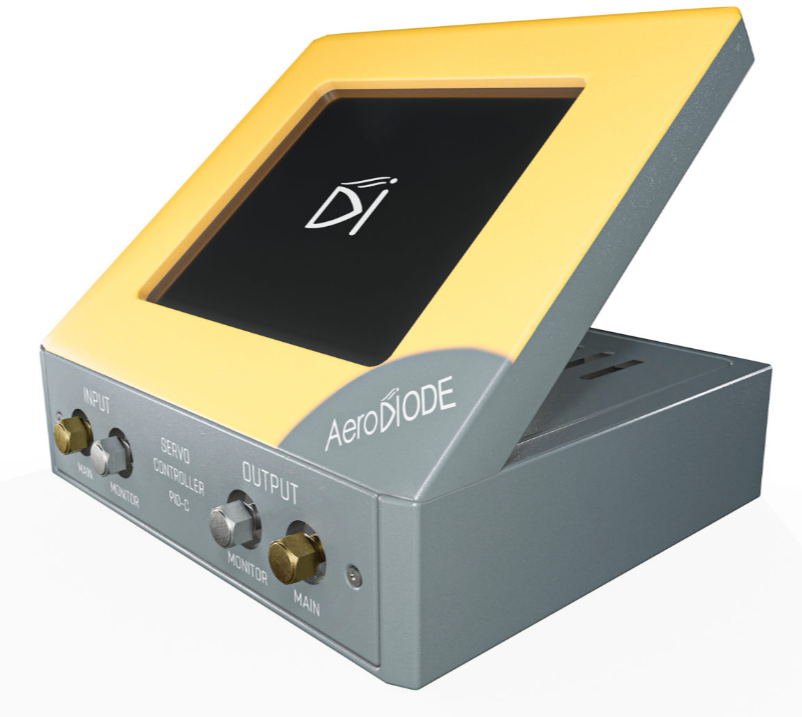

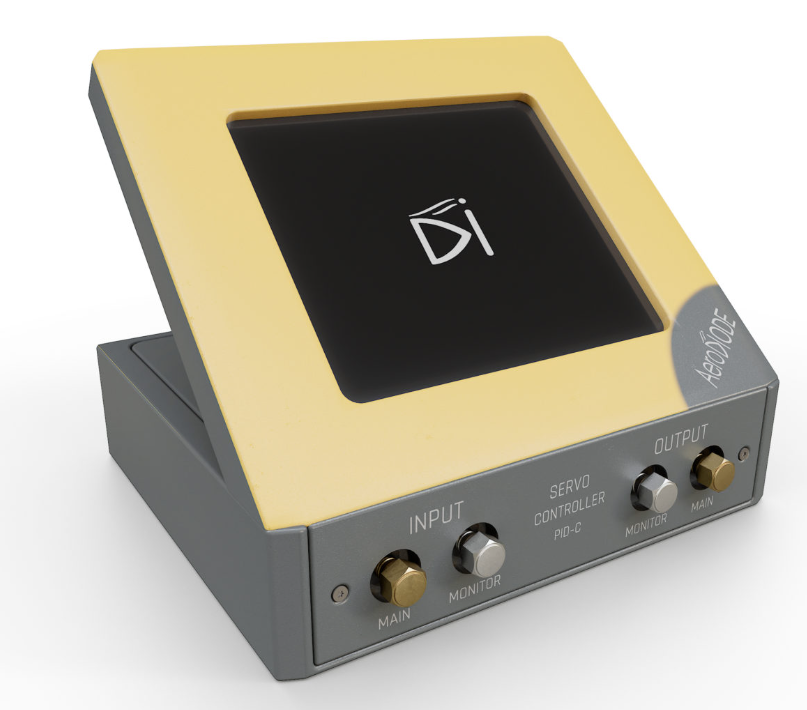

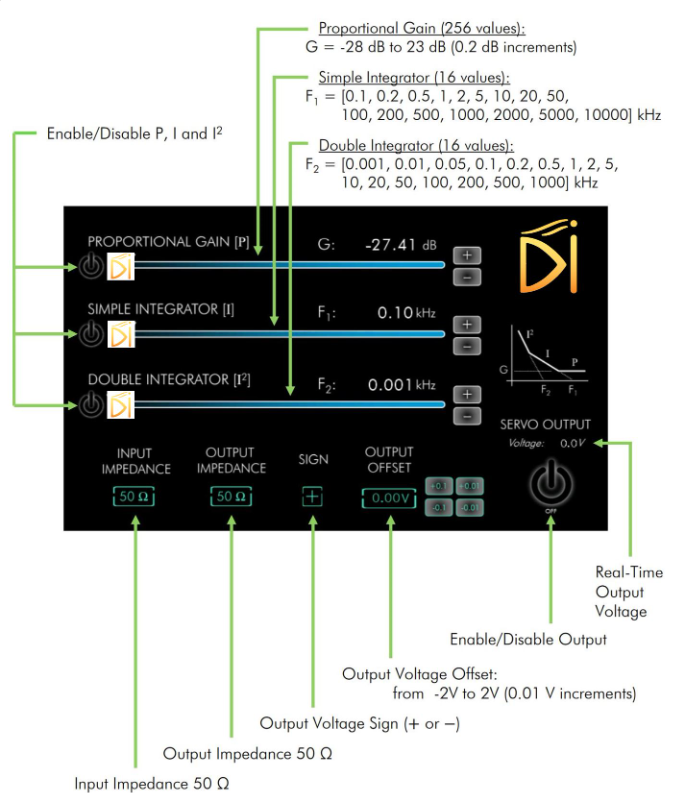

aeroDIODE Laser lock PID controller High bandwidth servo controller for laser phase locking and laser line-width narrowing. This laser lock PID controller with ultra-high bandwidth dynamically minimize the difference between a given system signal and its desired set point. It is an ideal tool for applications requiring a high bandwidth and low noise PID correction such as laser phase locking and laser linewidth narrowing. PID-C is a laser lock PID controller which has been designed to offer the lowest noise level over a wide PID control bandwidth up to 30MHz. It provides proportional, simple integrator and double integrator functions in an easy-to-use touchscreen controlled (computer free) module. It is an ideal tool for laser locking, laser linewidth narrowing or other applications requiring a high PID controller bandwidth. - High speed servo controller with PII2 loop - High control bandwidth >30 MHz ideal for laser locking - Immediate start and easy-to-use - 3 PID functions : proportional, simple Integrator,and double Integrator (I2) - Adjustable output offset 2 additional SMA outputs to monitor both the input and output signals - 256 proportional gain, 16 simple integrator and 16 double integrator setting levels - Short loop delay - Ultra low voltage noise density - Ideal Bode diagram reaching >200 dB gain |
|
| Application | ||
| Download | ||
Product Info
| Model | Datasheet | Input / Output | Control Bandwidth | Output Offset | Proportional Gain | Simple integrator | Double integrator | Open loop gain | Loop delay | Voltage noise density | Dimension | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PID-C | Datasheet | +-5V(50Ohm) / +-4.5V(50Ohm) | >30 MHz | Yes ; +-2V | -28dB to +23dB | 100Hz to 10MHz | 1Hz to 1MHz | >200dB | 24ns | <5 nV/Sqrt(Hz) | 155*150*112 mm3 | Scroll down ! |
This Laser lock PID controller has been designed by researchers for researchers who want to focus on their work without wasting time with overly sophisticated instruments : the use is immediate and the performances exceptional
A key application includes the laser locking of DFB laser diodes to reduce the emission linewidth at key wavelengths, for example, in the telecom or quantum optics domains.
This laser lock PID controller works alone or in series with other products in our range :
