Digital Delay Generator : 10 ps resolution - 15 ns insertion delay - 30 mV min input


-. 10 ps delay resolutionDigital delay generator timing
-. 1 V/3.3 V/5 V output voltage
-. Min input voltage: 30 mV
-. 150 MHz voltage level converter
-. 80 ps RMS jitter
-. 20 MHz standalone generator
-. Burst/Gate generator
-. USB interface
Application
Download
관심제품등록

Product Info

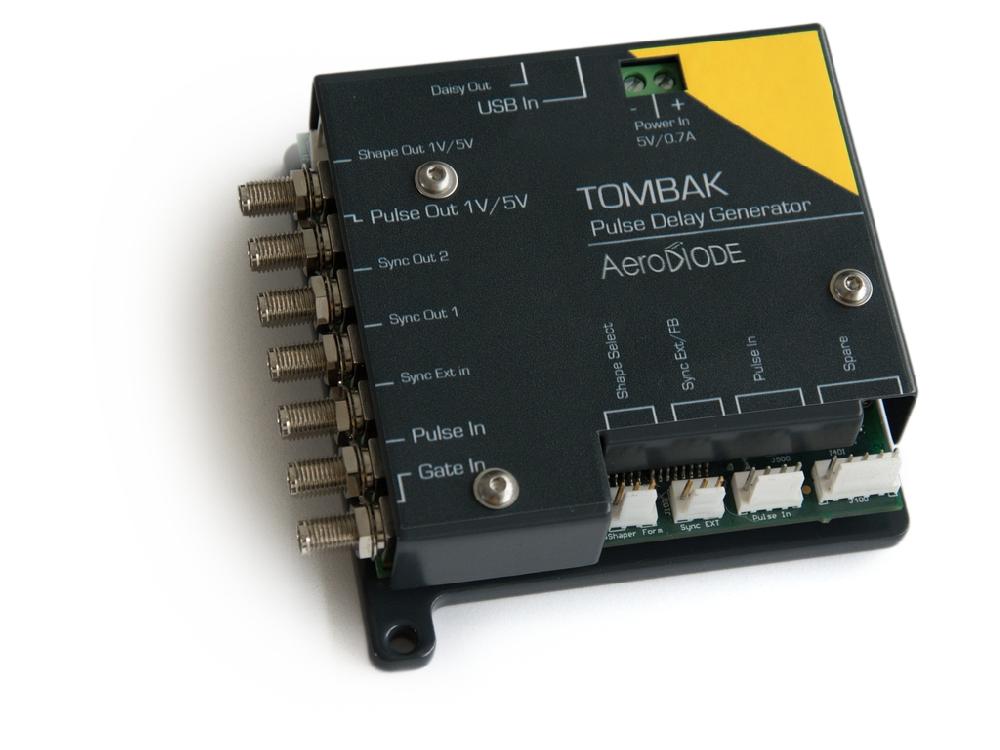

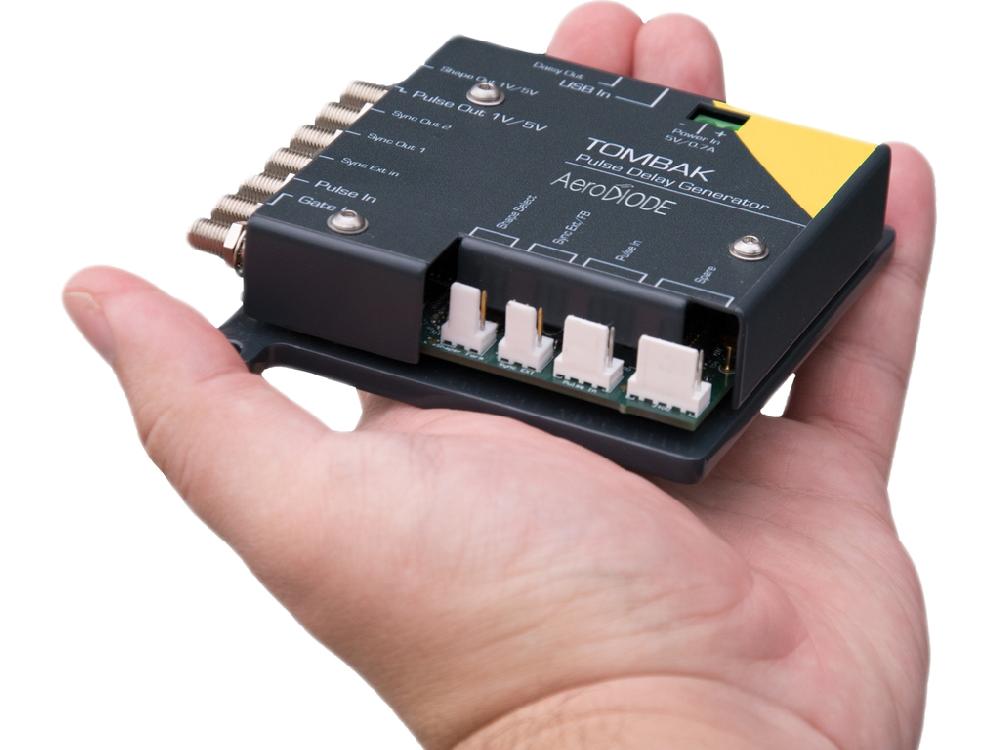

Digital delay generator KEY FEATURES

  • 10 ps delay resolutionDigital delay generator timing
  • 1 V/3.3 V/5 V output voltage
  • Min input voltage: 30 mV
  • 150 MHz voltage level converter
  • 80 ps RMS jitter
  • 20 MHz standalone generator
  • Burst/Gate generator
  • USB interface
  • 2 years warranty

The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)

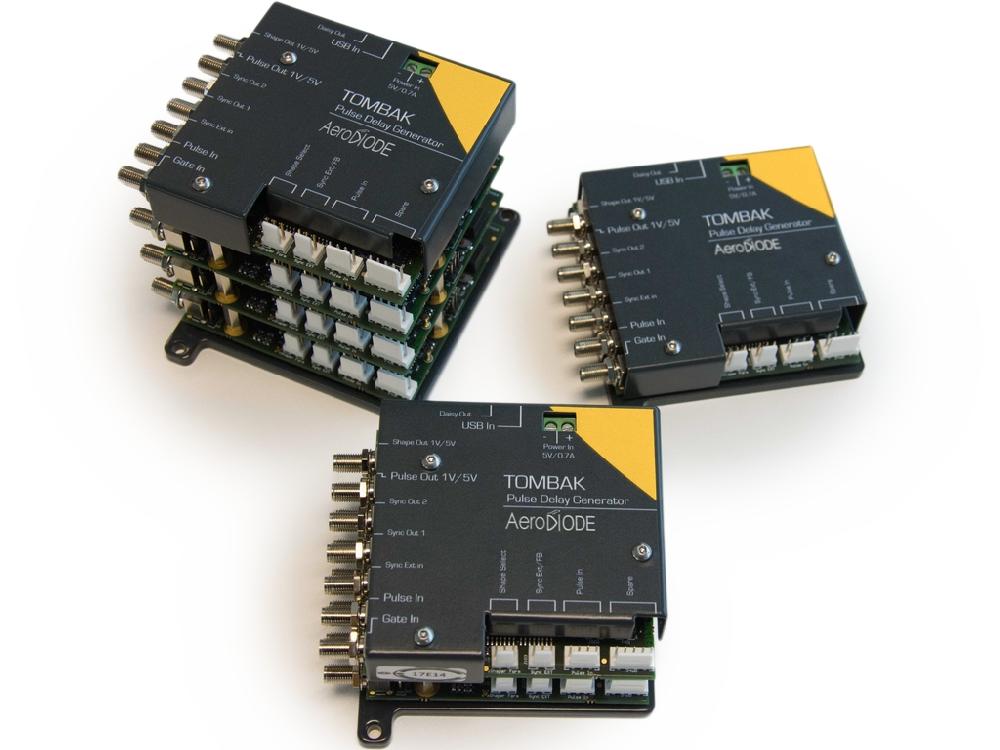

This Digital Delay Generator  works alone or in series with other products in our range like :

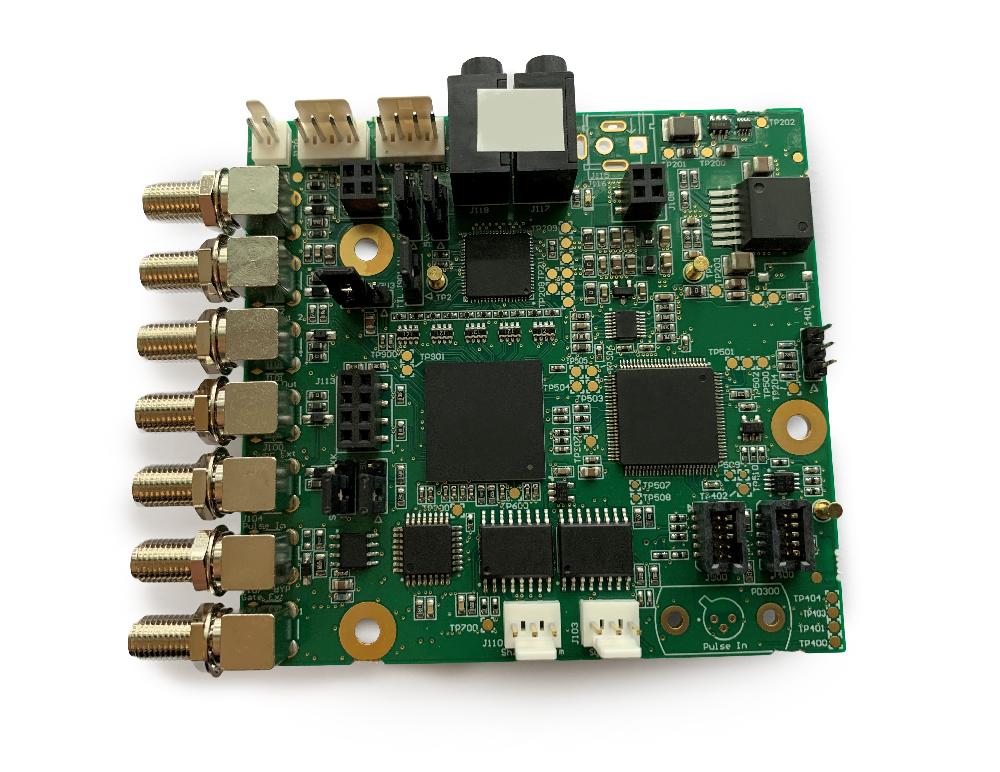

This module is part of our “Multiboard” laser driver and synchronization modules family. All the using cases are explained in a well detailed Digital Delay Generator – Operating_manual.


Pulse_out (SMA) :
Pulse delay10 ps to > 1000 s
Pulse delay resolution10 ps
Output levels (selected by user)1 V / 3.3 V / 5 V TTL
Output impedance50 Ohm (recommended)
Pulse width5 ns to >1000 s
Pulse width resolution2 ns
Pulse_IN (SMA) :
Input voltage30 mV to 3.3 V (software adjustable detection threshold)
Max input rate200 MHz
Insertion delayDown to 12 ns
Sync Ext / Gate inputs (SMA) :
Input voltage30 mV to 3.3 V
Threshold1.2 V (fixed)
Max input rate20 MHz
Divider / prescaler :
Division rangefrom 1 to 10^9 (selectable)
Voltage converter :
Max input frequency150 MHz
Jitter< 30 ps
Pulse Picker :
Max input/output frequency200 MHz / 20 MHz
Burst / Gate Generator :
Number of pulses1 to 10^9
Trigger-to-pulse delayAdjustable
Intra-burst resolution5 ns
Compatibilities and Libraries :Windows 7/10 ; DLLs, Hexa, LabVIEW, Python etc.
