- 전자장치 | Electronics > Power Supply - Lab version
| Product |

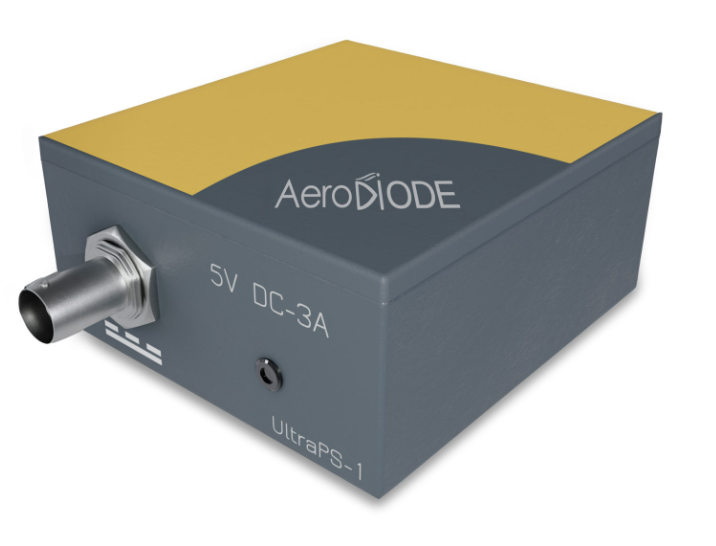

aeroDIODE Low noise linear power supply This low noise linear power supply makes you get the best pV-range noise density performances for critical components or applications such as amplifiers, oscillators, phase lock loops or active stabilization setup for lasers. - Voltage noise PSD down to less than 500 pV/√Hz - Residual ripple down to 5 µV rms over 1Hz to 1 MHz - Voltage accuracy better than 1% for all voltages (typically better than 0.4%) - Ultra high stability for long term use over several hours - Bicolor LED with power limit indication - Short circuit protection - Output current up to 8 A (2 V) - Max 25 W total for UltraPS-3 - Small form factor - The product includes it own MeanWell AC/DC power compatible with 110V / 220V electrical outlets. |
|
| Application | ||
| Download | ||
Product Info
| Model | Datasheet | Number of voltage outputs | Output voltage | Max output current | Voltage accuracy (Typ/max) | Short circuit protection | Voltage noise density (down to) | Residual ripple (down to) | Dimensions (mm3) | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| UltraPS-1 | Datasheet 360° | 1 | 5V or special | 3A | 0.4%/1% | Yes | 500pV/sqrtHz | 5µV rms (1Hz-1Mhz) | 125*80*35 | Scroll down ! |
| UltraPS-2 | Datasheet 360° | 2 | 2V/5V or special | 8A / 1A | 0.4%/1% | Yes | 500pV/sqrtHz | 5µV rms (1Hz-1Mhz) | 125*80*35 | |
| UltraPS-3 | Datasheet 360° | 3 | 5V / 12V / 15V or any special | 1.3A / 1.3A / 1.3 A (total 25W) | 0.4%/1% | Yes | 500pV/sqrtHz | 5µV rms (1Hz-1Mhz) | 165*155*32 |
A key application of this low noise linear power supply includes the powering of key low noise active stabilization setup for ultra-narrow linewidth laser sources used , for example, in telecom or quantum optics domain.
This low noise linear power supply works alone or in series with other products in our range :
