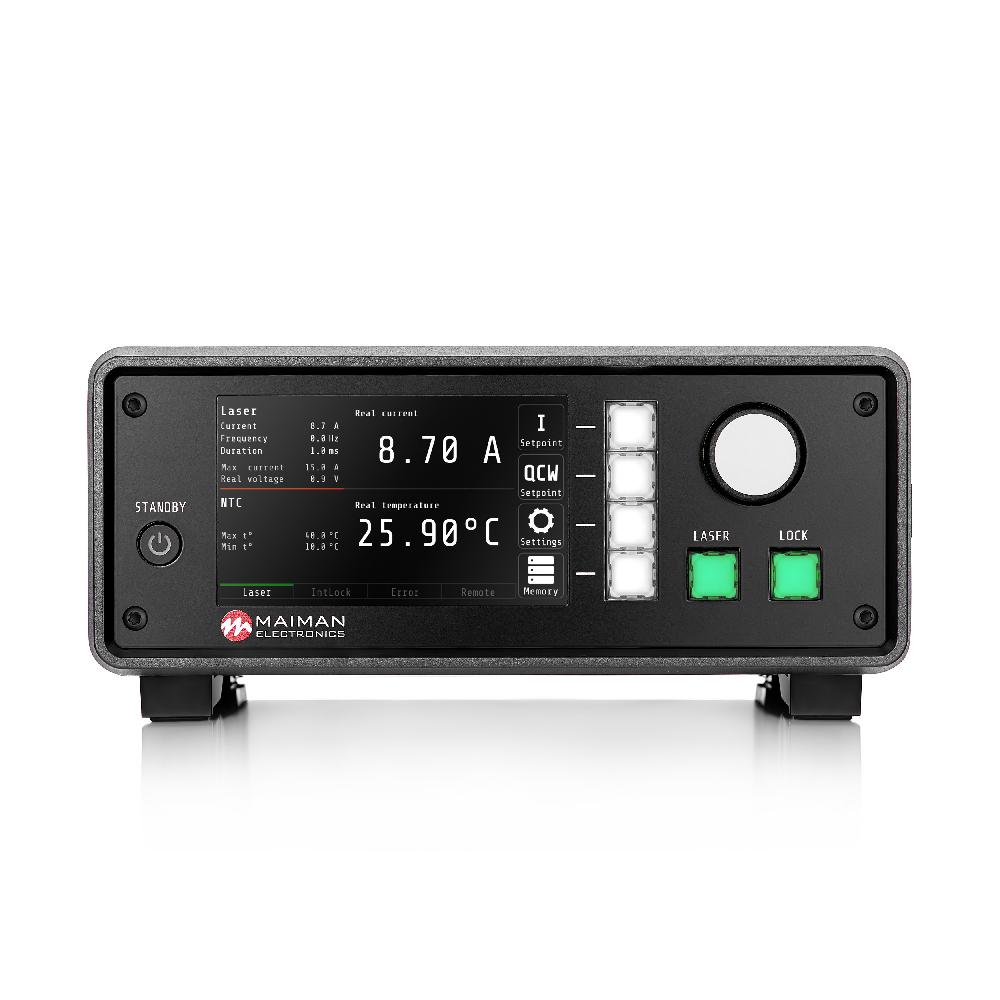

Benchtop Laser Diode Driver CW/QCW 30A 10V MBH3010


-. Low current ripple
-. No need to adjust voltage
-. Soft-start
-. Adjustable overcurrent limit
-. Thermal warning and shutdown
-. Reverse current protection
-. Crowbar circuit protection
-. Universal controls
-. NTC thermistor input
-. Own software
Application -. Supplying laser diodes, bars and arrays
-. Supplying high power LED arrays
Download
관심제품등록

Product Info




Benchtop Laser Diode Driver CW/QCW 30A 10V MBH3010

CURRENT, VOLTAGE

  • Output current LD (I): 0-30 A
  • Output voltage LD (V): 0.7-10 V
  • Setpoint Resolution: 0,01 A
  • Rise Time: (Iout = 15A) min - 300 μs; max - 700 μs
  • Rise Time: (Iout = 30A) min - 300 μs; max - 600 μs
  • Fall Time: min - 300 μs; max - 1500 μs
  • Current stability: 0.2 %
  • Current Setpoint Absolute Accuracy: <1 %
  • Air Cooling

Laser Diode Protection

  • Soft-Start Current Ramp
  • Over-Current Protection Fast Shutdown
  • Reverse current protection
  • Crowbar Circuit Protection
  • ESD and transient protection
  • Interlock

DIMENSIONS AND WEIGHT

  • Dimensions: 257 x 271 x 117 mm
  • Weight: 3.6 kg

USER INTERFACE

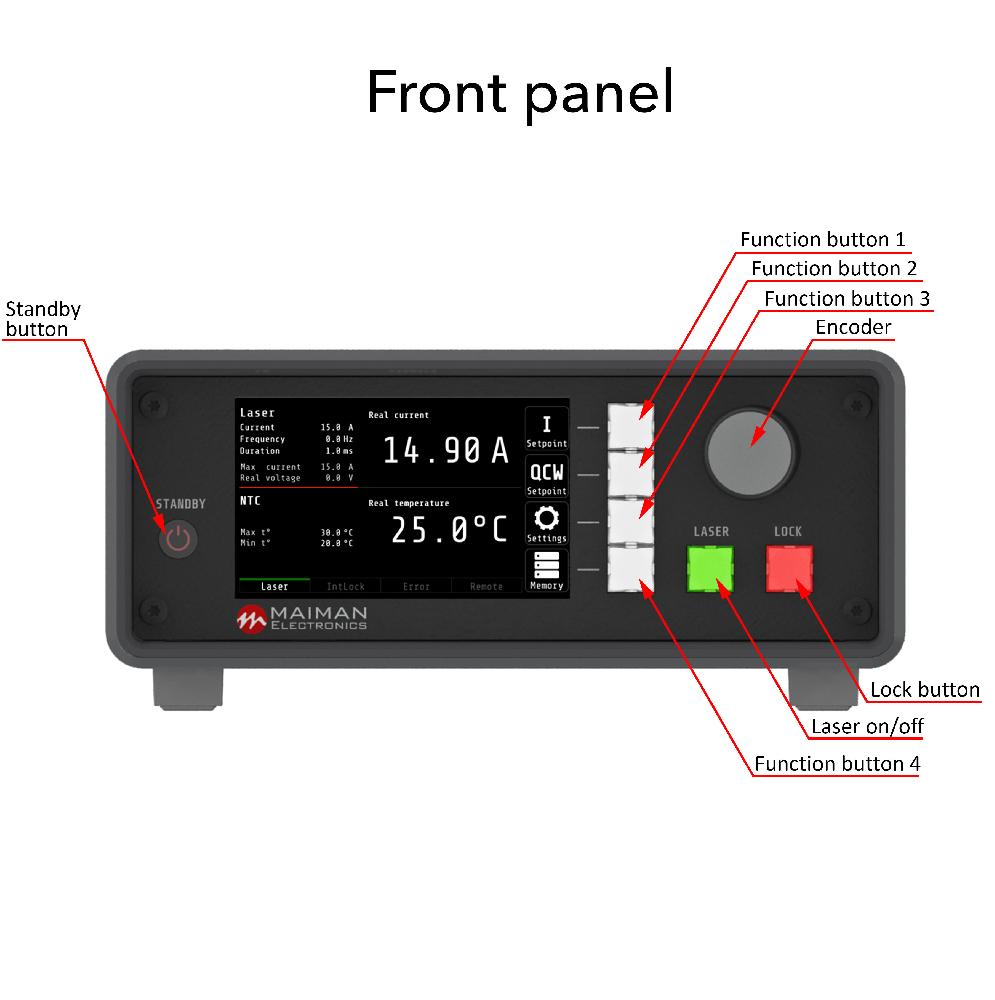

  • Front Panel (Touch Screen or Buttons)
  • USB

INPUT

  • Single Phase 100-240 VAC, 50Hz

PACKAGE SET

  • Laser diode power supply – 1 pcs
  • Power cord – 1 pcs
  • USB cable – 1 pcs
  • Interlock connector – 1 pcs
  • Datasheet & User Manual – 1 pcs

WARRANTY PERIOD

  • 1-year manufacturer's warranty



Benchtop Laser Diode Driver CW/QCW 30A 10V MBH3010

Price



  • Controlled locally with Touch Screen or Buttons
  • Controlled remote over USB (Software and Communication Protocol included)
  • Multiple Layers of Laser Diode Protection
  • NTC thermistor input (for shutdown driver when the laser diode was overheating)
  • Possibility to calibrate current within 5%

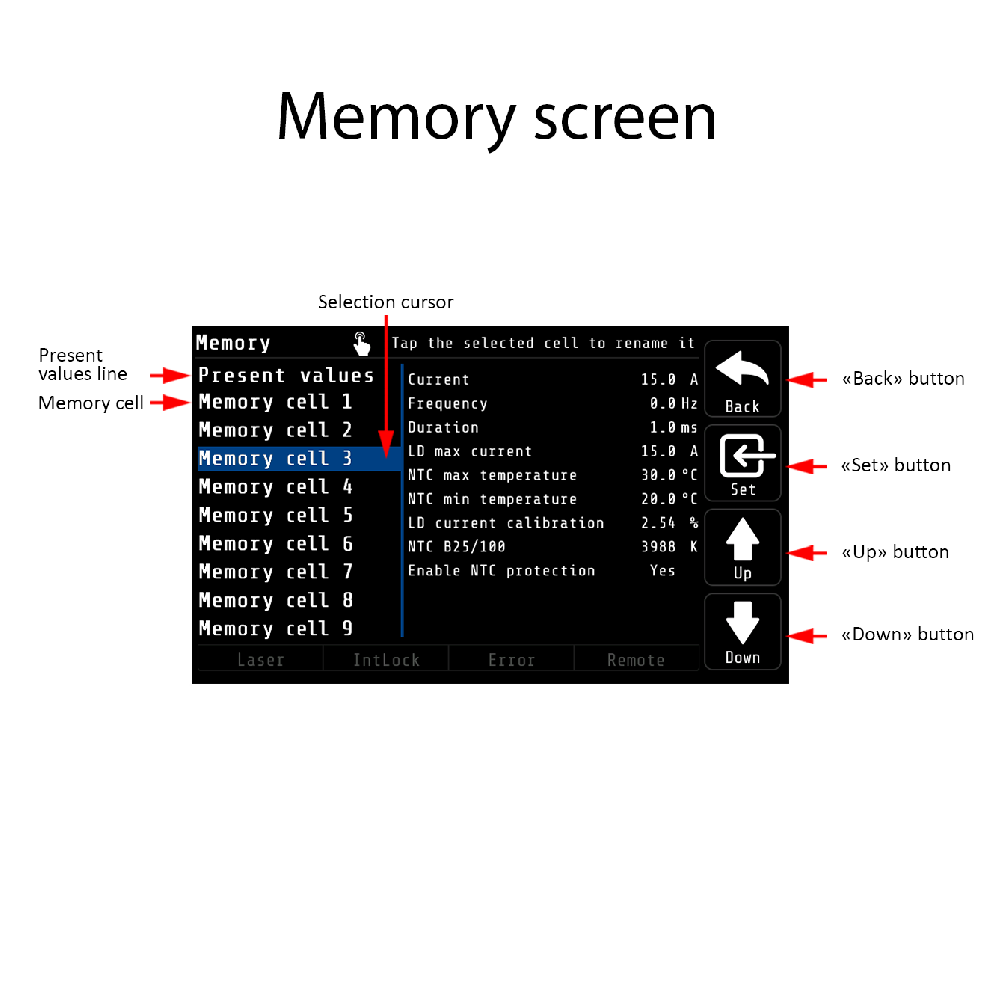

  • Option to save 9 presetting
  • Current stability < 0.1%
  • Ability to set Limits
  • Free software
