- 레이저다이오드 | Laser Diode > Machine Vision Laser module
| Product |

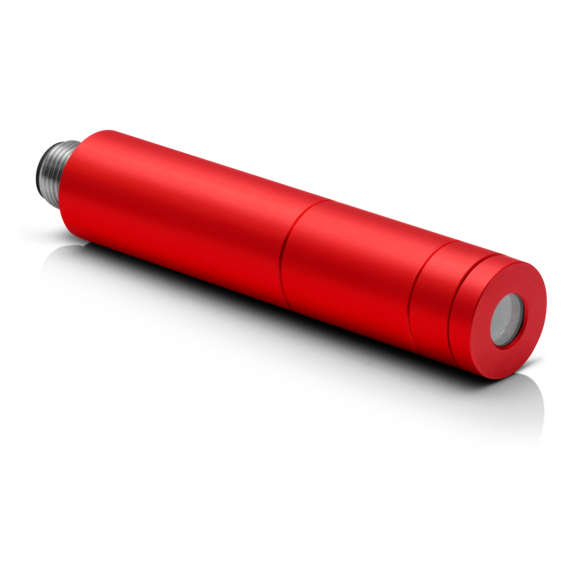

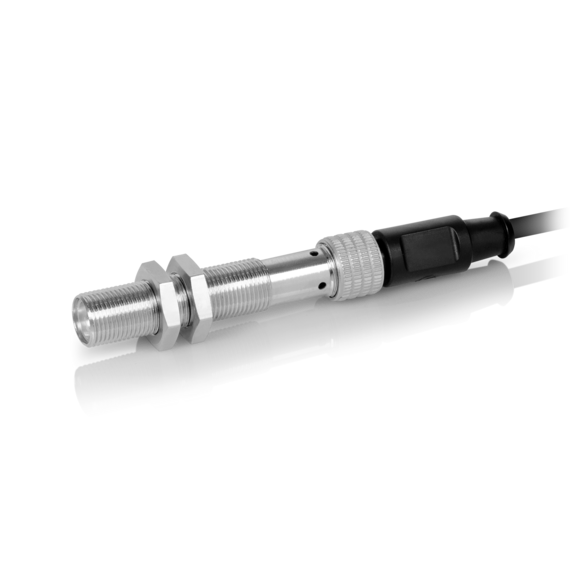

FLEXPOINT® Machine Vision Series - Wavelength : Blue : 405 / 450 / 488nm Green : 520nm (laser diode) or 532nm (DPSS lasr) Red / IR : 635-660 / 685 / 785 / 808-980nm - Output power : From <1mW to 100mW - Beam Shapes : Uniform lines, uniform multilines, dots, various different patterns such as circles, dot matrices, crosses - Focus : Adjustable or preset at factory. Includes easy focusing mechanism - Supply voltage : 4.5-30 VDC (depends on laser diode used) - Signal : Digital modulation / Trigger - Power supply : Cable connection or M12 connector for easy integration - Alignment : Outstanding bore sighting and pointing stability - Protection class : Protection class up to IP67 |
|
| Application | + Lasers for Machine Vision Applications. Laser modules have to fulfill special requirements in industrial image processing. Line lasers with a homogeneous power distribution are generally used in metrology, but high-power laser designs and special housings are also in demand in industrial image processing. | |
